Boston, MA Spec
Bachelor and Finnenan

We have very limited information at FH.O about these hydrants. It is our understanding that these hydrants were made by Bachelor and Finnenan to Boston Water Department specifications and designs. The hydrants have NO embossing for manufacturer or size.

If you have any information regarding these fire hydrants or the company, please Email Us.

All photos © Jeff Kaminski

  Non-gated Hydrants
These hydrant(s) have no internal gating.

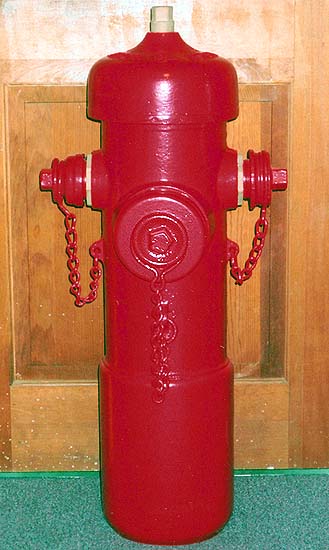

0478
Nozzles: 2x 2", 1x 4"
Size: ~6" V.O., 8" I.D.
Dated: (none)
Location: private collection

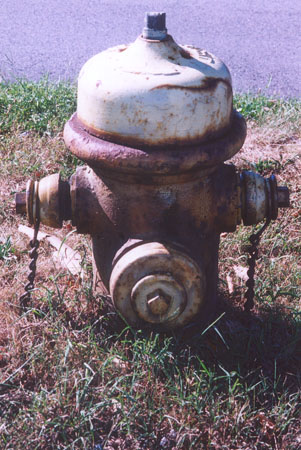

1472
Nozzles: 2x 2", 1x 4"
Size: ~6"
Dated: (none)
Location: Massachusetts

  Internally gated Hydrants

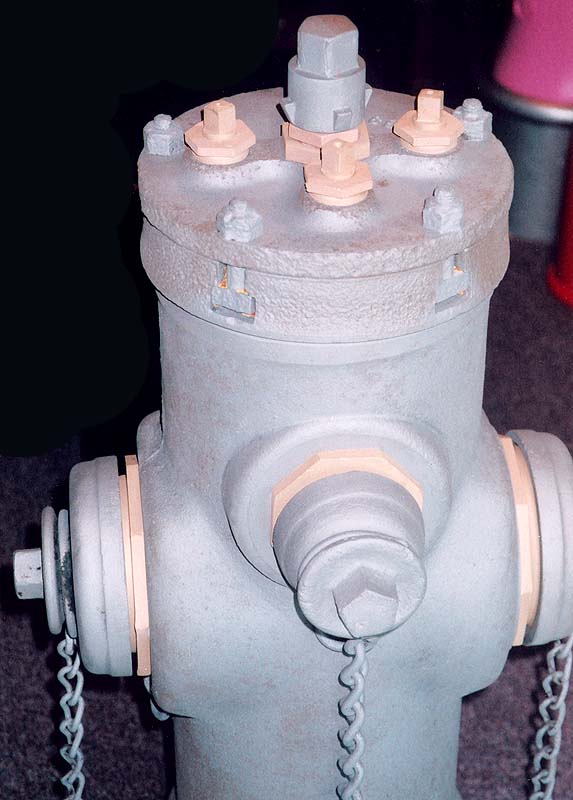

  • ALL the nozzles in these hydrants are internally gated. By design, the bonnet must be removed to gain access to the operating nuts for each nozzle, as shown in photo 2053b.

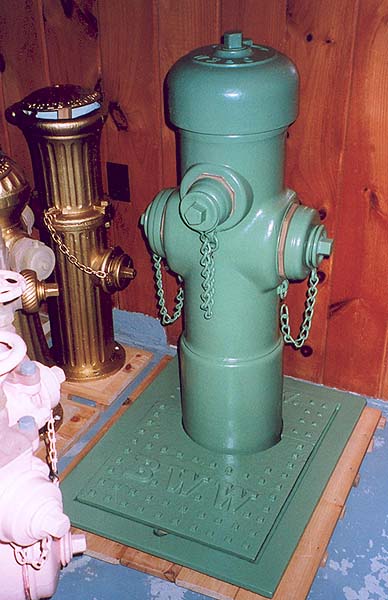

  • These hydrants were installed in Boston with an iron access cover, so that the hydrants could be serviced without digging, as seen in photo 2053c

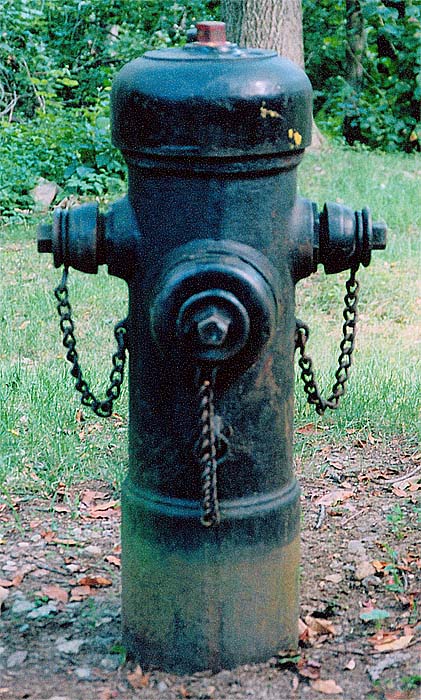

  • 2066
    Nozzles: 2x 2", 1x 4"
    Size: ~6" V.O., 8" I.D.
    Dated: (none)

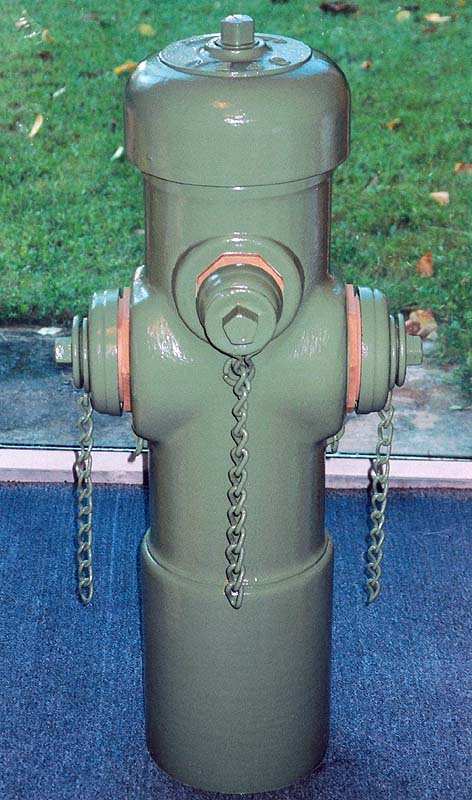

    2053
    Nozzles: 1x 2", 2x 4"
    Size: ~6" V.O., 8" I.D.
    Dated: 1888
    Location: private collection
