Chapman Valve Mfg. Co.- Indian Orchard, MA
List 82s - Part 2

  List 82 (~1890 to ~1900)
These List 82s are almost the last of the "small barrel, small bonnet" style; with a few exceptions found in later vintage groups.
  • Bonnet: "lacework" on the underside, only the word "Open" cast on the top
  • Nozzles: leaded-in
  • Logo: updated by dropping the redundant "M'FG. CO." after the words "CHAPMAN VALVE" on the circle in the "snowflake". Two versions exist with regard to the large letters "C" & "V" in the middle of the logo:
  • the early flat letters at the left
  • the later rounded letters at the right.
  • 2357
    Nozzles: 1x 2"
    Size: 3" V.O.

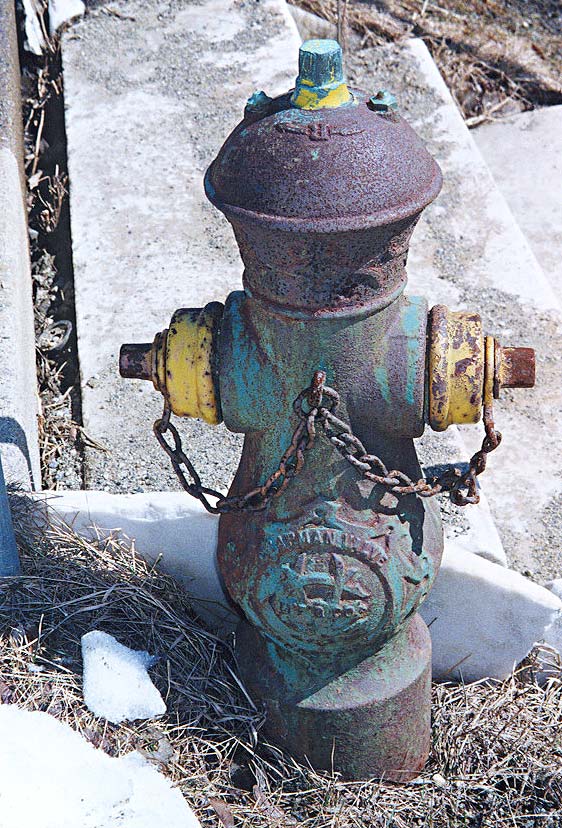

    0939
    Nozzles: 2x 2"
    Size: 3" V.O.
    Location: Massachusetts

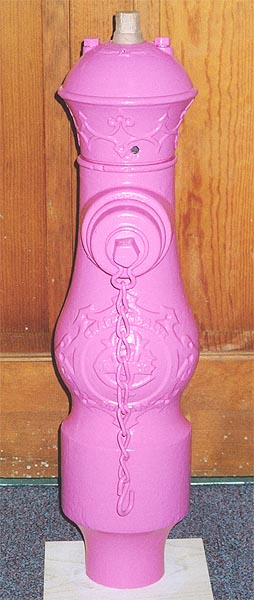

    2354
    Nozzles: 1x 2"
    Size: 3" V.O.
    Note: 1 pc. barrel
    0406
    Nozzles: 2x 2"
    Size: ? V.O.
    Note: 1 pc. barrel
    Location: Bob G. collection
    Photo: 2000, Bob Green
    0824
    Nozzles: 1x 2"
    Size: 4" V.O.
    0825
    Nozzles: 2x 2"
    Size: 4" V.O.

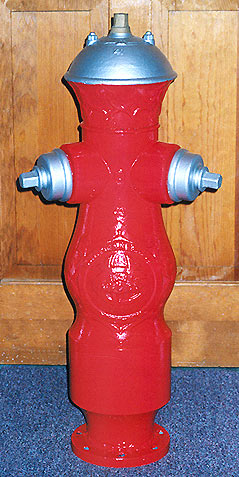

    0843
    Nozzles: 2x 2"
    Size: 4" V.O.
    Note: same as 0825 except nozzles stick out ~1" further, ~c.1900
    0844
    Nozzles: 2x 2", 1x 4"
    Size: 4" V.O.

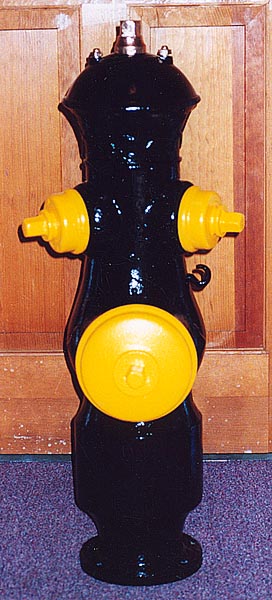

    0826
    Nozzles: 2x 2", 1x 5"
    Size: 4" V.O.

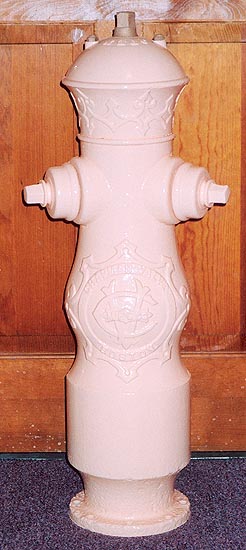

    0845
    Nozzles: 2x 2"
    Size: 5" V.O.

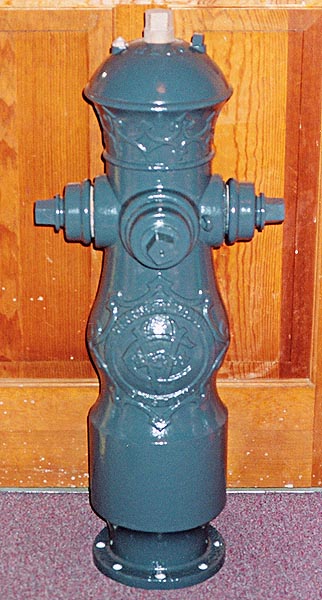

    2364
    Nozzles: 3x 2"
    Size: 5" V.O.
    0829
    Nozzles: 2x 2", 1x 4"
    Size: 5" V.O.
    0846
    Nozzles: 2x 2", 1x 5"
    Size: 5" V.O.

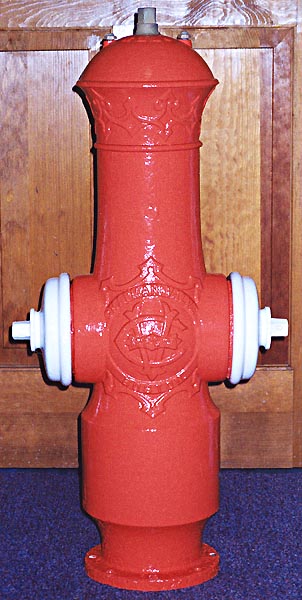

    0827
    Nozzles: 2x 5"
    Size: 5" V.O.

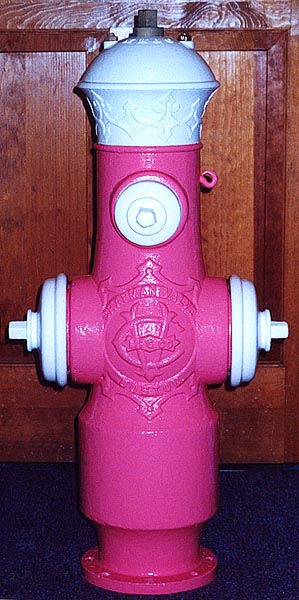

    0828
    Nozzles: 1x 2", 2x 5"
    Size: 5" V.O.

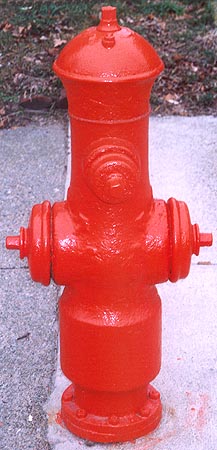

    1725
    Nozzles: 1x 2", 2x 5"
    Size: 5" V.O.
    Note: same as 0828 except for logo location
    Location: Massachusetts
    2074
    Nozzles: 2x 2"
    Size: 6" V.O.
    Location: Vermont.

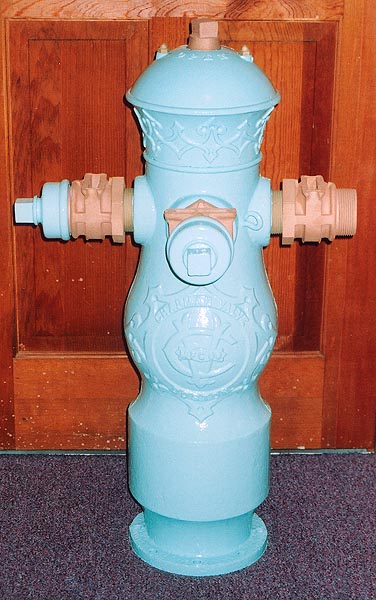

    1345
    Nozzles: 3x 2"
    Size: 6" V.O.

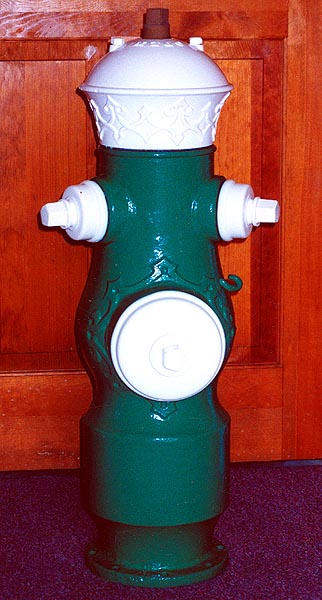

    0831
    Nozzles: 2x 2", 1x 5"
    Size: 6" V.O.

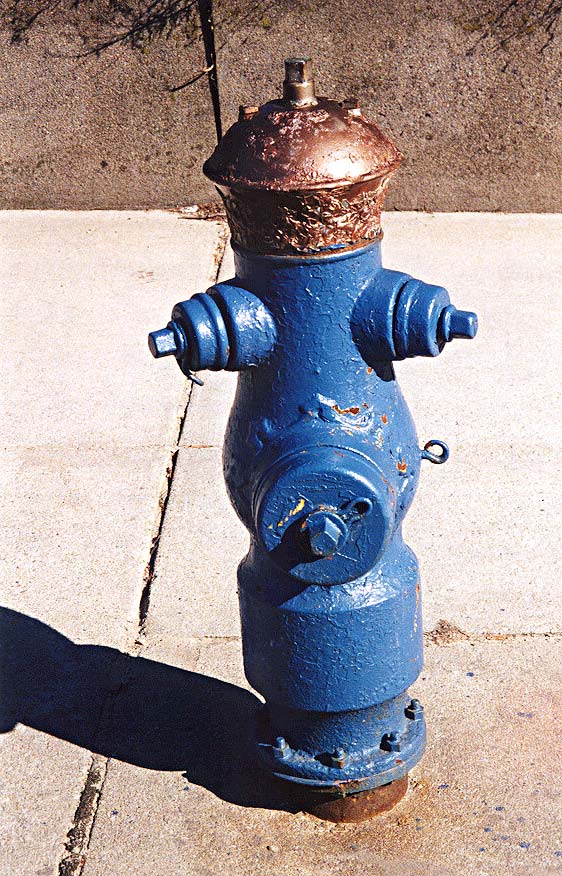

    0938
    Nozzles: 2x 2", 1x 5"
    Size: 6" V.O.
    Note: same as 0831 except nozzles stick out ~1" further, ~c.1900
    Location: Massachusetts

      List 82 (~1900)
    These List 82s are the first of the "large barrel, large bonnet" style.
  • Bonnet: "lacework" on the underside, only the word "Open" cast on the top. The hydrants in photos 0814 & 1708 below likely have incorrect bonnets.
  • Logo: the same 8-point "snowflake" surrounding the rounded letters "C" and "V" on top of each other with "MFG. CO. " in the very middle. "U.S.A." is added to the wording "CHAPMAN VALVE BOSTON U.S.A." on the circle in the "snowflake" as shown at the left.
  • Nozzles: leaded-in

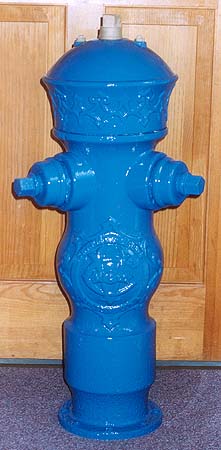

  • 1707
    Nozzles: 2x 2"
    Size: 4" V.O.
    0833
    Nozzles: 2x 2"
    Size: 5" V.O.

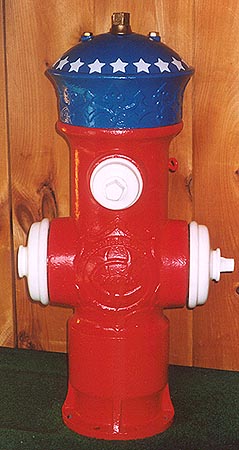

    0814
    Nozzles: 1x 2", 2x 5"
    Size: 5" V.O.

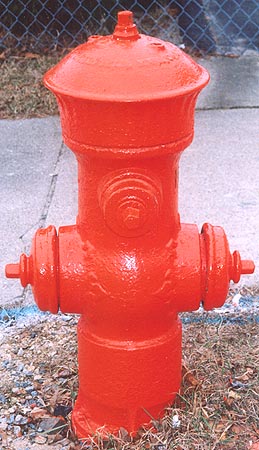

    1708
    Nozzles: 1x 2", 2x 5"
    Size: 5" V.O.
    Note: same as 0814 except for logo location
    Location: Massachusetts

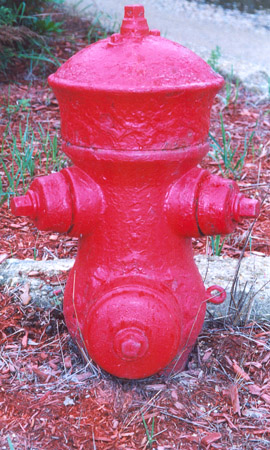

    0937
    Nozzles: 2x 2", 1x 4"
    Size: 5" V.O.
    Location: Massachusetts

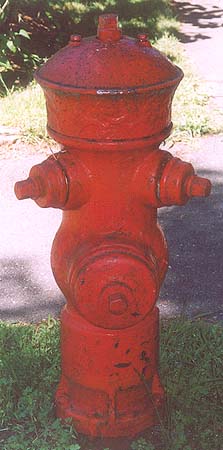

    0847
    Nozzles: 2x 2", 1x 5"
    Size: 5" V.O.
    Location: Massachusetts

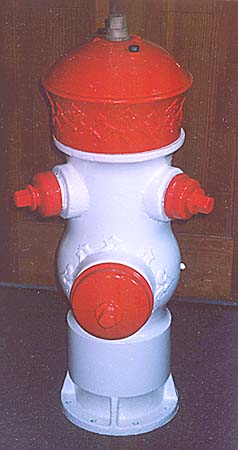

    0834
    Nozzles: 2x 2", 1x 5"
    Size: 6" V.O.
    1745
    Nozzles: 4x 2"
    Size: 6" V.O.
    Location: New Hampshire
