Eddy Valve Co. - Waterford, NY
Part 2 - 2 pc. short upper barrel models

These two groups of Eddy hydrants are of a 2 piece barrel design with a short upper barrel.
  2 piece barrel (short upper; lower w/O.D. rib)
These first 2 piece barrel models have the following characteristics:
  • Bonnet details: Most hydrants found have bonnets with the same smooth 'step' found on the early 1 pc. barrel hydrants. Some however have the later bonnet with the step eliminated. The patent date is dropped with the 2 pc. barrel design.
  • Barrel details: 2 styles of nozzle chain attachment to barrel have been found; a cast on eyelet as found on the earlier 1 pc. barrel hydrants and the later bolt on bracket. The rounded ground line O.D. rib is continued from the 1 pc. barrel hydrants. (Logos as in the photo at left; note 2 points of the snowflake have been eliminated)

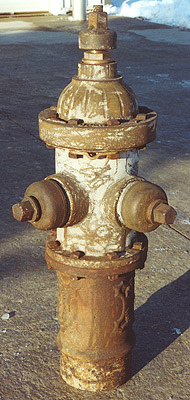

  • 1084
    Nozzles: 2x 2"
    Size: ~4" V.O.
    Chain eyelet: bolt on
    Location: John A. collection
    Photo: © 2001, J. Anderson

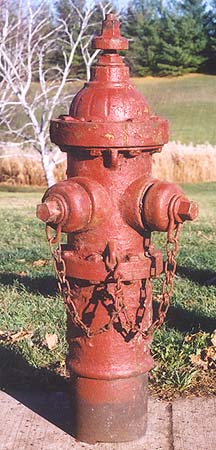

    2274
    Nozzles: 2x 2"
    Size: ~4" V.O.
    Chain eyelet: cast on
    Location: John A. collection
    Photo: © 2001, J. Anderson
    2297
    Nozzles: 1x 2", 1x 3"
    Size: ~4" V.O.
    Chain eyelet: cast on
    Location: Ohio
    Photo: © 2004, L. Lund

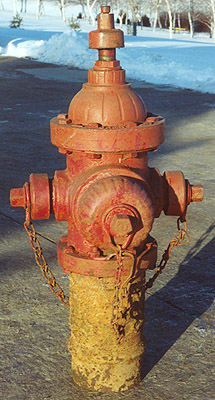

    1083
    Nozzles: 2x 2", 1x 4"
    Size: ~4" V.O.
    Chain eyelet: bolt on
    Location: John A. collection
    Photo: © 2001, J. Anderson

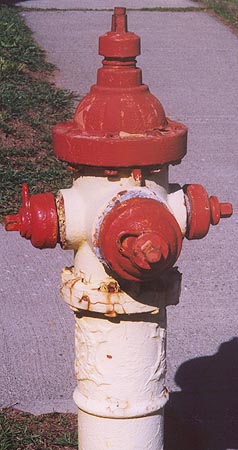

    1754
    Nozzles: 2x 2", 1x 3"
    Size: ~4" V.O.
    Chain eyelet: cast on
    Location: New York
    Photo: © 2002, J. Kaminski

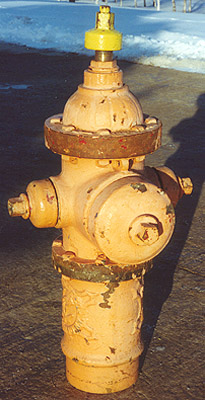

    1082
    Nozzles: 2x 2", 1x 4"
    Size: ~4" V.O.
    Chain eyelet: cast on
    Location: John A. collection
    Photo: © 2001, J. Anderson

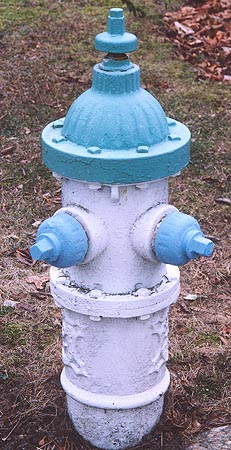

    1706
    Nozzles: 2x 2"
    Size: ~5" V.O.
    Chain eyelet: cast on
    Location: Massachusetts
    Photo: © 2002, J. Kaminski

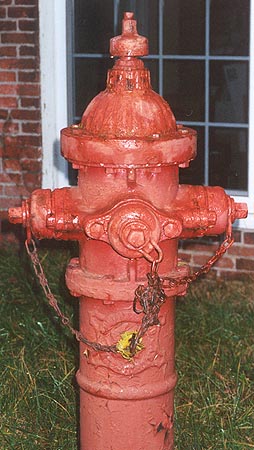

    1505
    Nozzles: 3x 2" bolted on
    Size: ~5" V.O.
    Chain eyelet: cast on
    Location: Connecticut
    Photo: © 2001, J. Kaminski

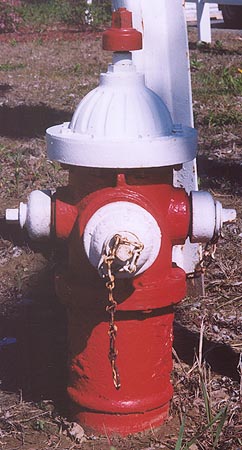

    1755
    Nozzles: 2x 2", 1x 3"
    Size: ~5" V.O.
    Chain eyelet: cast on
    Location: New York
    Photo: © 2002, J. Kaminski

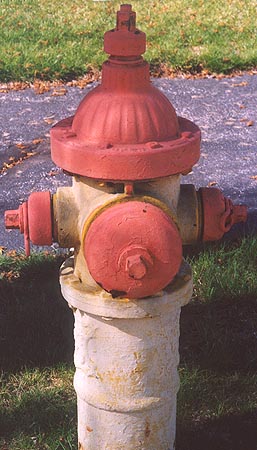

    1756
    Nozzles: 2x 2", 1x 5"
    Size: ~5" V.O.
    Chain eyelet: cast on
    Location: New Hampshire
    Photo: © 2002, J. Kaminski

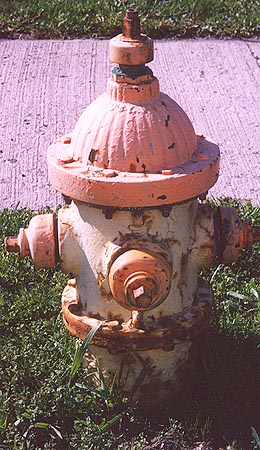

    1757
    Nozzles: 3x 2"
    Size: ~6" V.O.
    Chain eyelet: cast on
    Location: New York
    Photo: © 2002, J. Kaminski

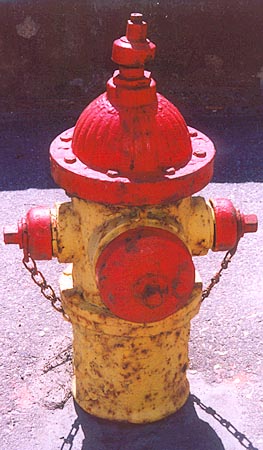

    1759
    Nozzles: 2x 2", 1x 5"
    Size: ~6" V.O.
    Chain eyelet: cast on
    Location: New Hampshire
    Photo: © 2002, J. Kaminski

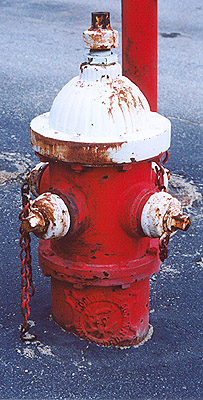

    1259
    Nozzles: 4x 2"
    Size: ~6" V.O.
    Chain eyelet: bolt on?
    Location: Massachusetts
    Photo: © 2001, J. Kaminski

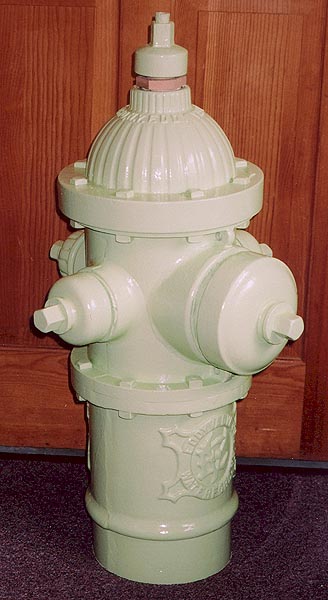

    0874
    Nozzles: 3x 2", 1x 5"
    Size: ~6" V.O.
    Chain eyelet: cast on
    Location: Massachusetts
    Photo: © 2001, J. Kaminski

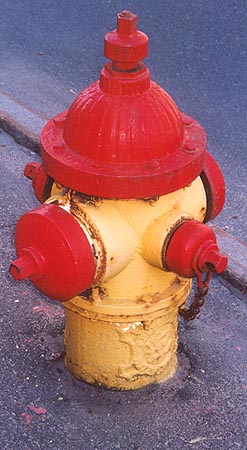

    1758
    Nozzles: 2x 2", 2x 5"
    Size: ~6" V.O.
    Chain eyelet: cast on?
    Location: New Hampshire
    Photo: © 2002, J. Kaminski

      2 piece barrel (short upper; lower w/o O.D. rib)
    These later 2 piece barrel models have the following characteristics:
  • Bonnet details: All hydrants have the later bonnet with the step eliminated.
  • Barrel details: Nozzle chain attachment is via the later bolt on bracket. The ground line O.D. rib has been eliminated. (2 styles of logos exist as in the photos at left: one with V.O. size only, the other also has bury depth)
  • 1577
    Nozzles: 1x 2"
    Size: 4" V.O.
    Logo: size & bury depth
    Location: Shane B. collection
    Photo: © 2001, S. Bullock

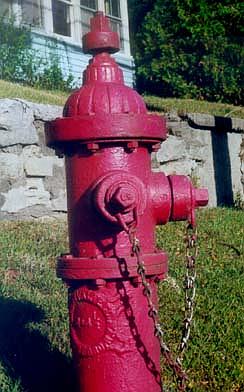

    0060
    Nozzles: 2x 2"
    Size: 4-4" V.O.
    Logo: size only
    Location: East Dubuque, IL
    Photo: © 1999, J. Anderson

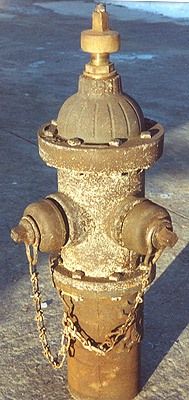

    1086
    Nozzles: 2x 2"
    Size: 4" V.O.
    Logo: size & bury depth
    Location: John A. collection
    Photo: © 2001, J. Anderson

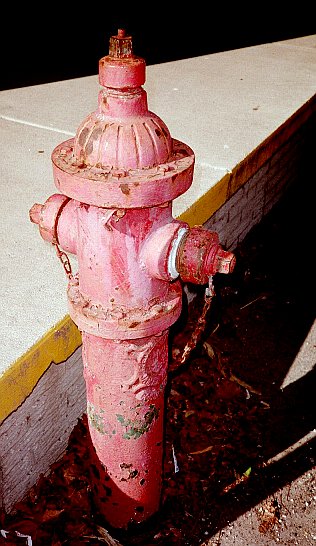

    0159
    Nozzles: 2x 2"
    Size: 4" V.O.
    Logo: ?
    Location: Lansing, IA
    Photo: © 2001, J. Quist

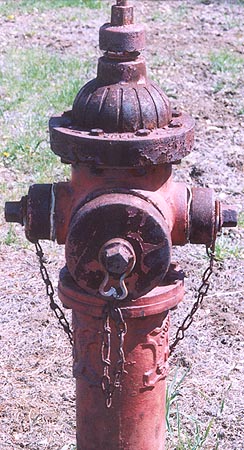

    1760
    Nozzles: 2x 2", 1x 5"
    Size: 4" V.O.
    Logo: ?
    Location: Massachusetts
    Photo: © 2002, J. Kaminski

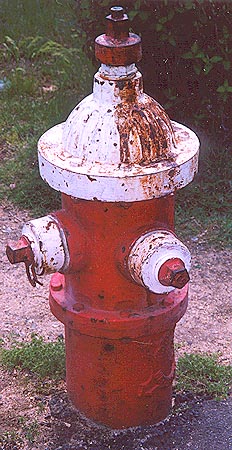

    1761
    Nozzles: 2x 2"
    Size: 5" V.O.
    Logo: (1 side only)
    Location: Massachusetts
    Photo: © 2002, J. Kaminski

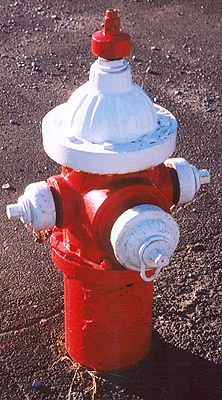

    1087
    Nozzles: 2x 2", 1x 3"
    Size: 5" V.O.
    Logo: size & bury depth
    Location: New York state
    Photo: © 2001, J. Kaminski
    1294
    Nozzles: 2x 2", 1x 4"
    Size: 5" V.O.
    Logo: size & bury depth
    Location: John A. collection
    Photo: © 2002, J. Anderson

      'Clow/Eddy': Short Upper Barrel
    These hydrants look like the previous Eddy Valve hydrants but have "Clow" cast onto the barrel logo.
    0203
    Nozzles: 2x 2", 1x 4"
    Size: ~4" V.O.
    Dated: 1960
    Location: Dave R. collection
    Photo: © D. Raupach

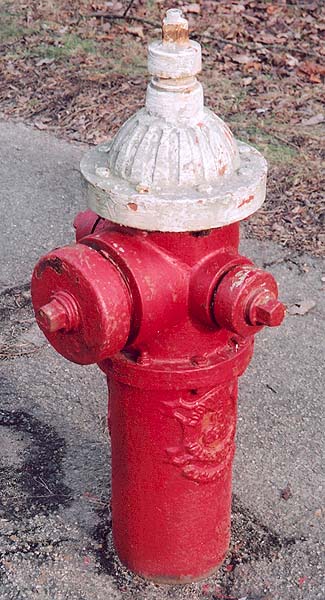

    2415
    Nozzles: 2x 2", 1x 5"
    Size: ~5" V.O.
    Notes: Coshocton embossing
    Location: Massachusetts
    Photo: © J. Kaminski

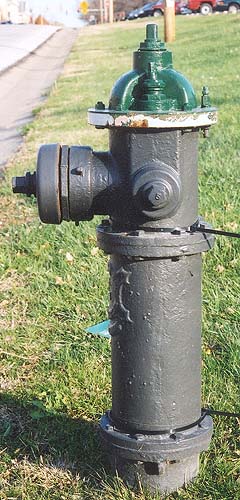

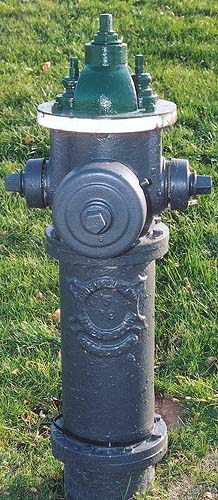

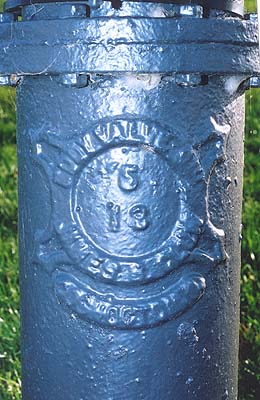

    2101
    Nozzles: 2x 2" gated, 1x 4"
    Size: ~6" V.O.
    Other views: Side, Logo
    Location: Illinois
    Photo: © J. Anderson
    1400
    Nozzles: 2x 2", 2x 4"
    Size: ~6" V.O.
    Note: no cast wording
    Location: Steve P. collection
    Photo: © J. Anderson

    These later hydrant(s) have no logo on the lower barrel. They do have embossing on the nozzle section.

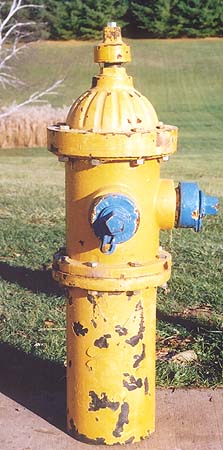

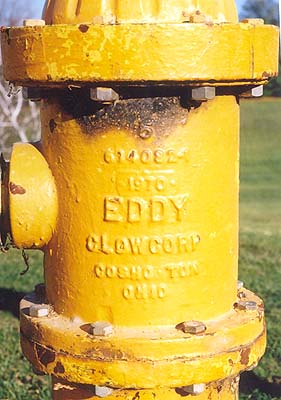

    2272
    Nozzles: 2x 2"
    Size: 5" V.O.
    Dated: 1970
    Other view: embossing
    Location: John A. collection
    Photo: © J. Anderson
