Rensselaer Valve - Troy, NY
List 90s - Part 4 (Multiple Valve)

These top heavy appearing List 90s have multiple operating nuts on top of the bonnet. Besides the main valve operating nut they have an additional operating nut for each independently gated nozzle. All known examples have a ground line O.D. rib indicating a 1 pc. barrel. They are divided by size similar to the conventional List 90s presented in Parts 1 & 2; except that the "bonnet bolts" are not visible on top the bonnet ... only the nut pockets are visible in the top of the barrel.
  Multiple Valve List 90s: 4 bolt bonnet
These small hydrants likely have a 4" main valve opening. The barrel O.D. is 6" measured near the ground line O.D. rib. These have leaded in nozzles unless otherwise indicated.

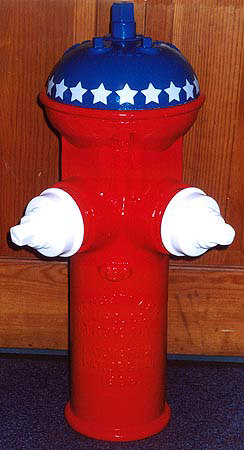

0867
Nozzles: 2x 2" gated
Location: Jeff K. collection
Photo: © J. Kaminski

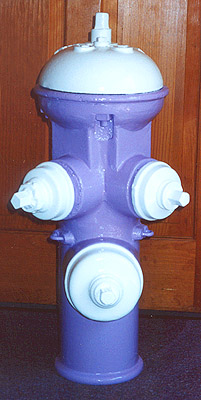

0866
Nozzles: 2x 2" gated, 1x 4"
Location: Jeff K. collection
Photo: © J. Kaminski

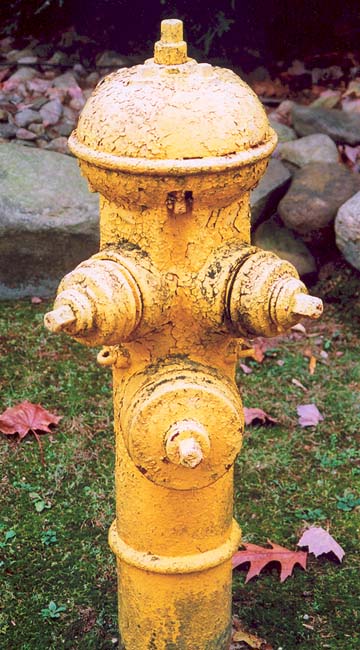

2252
Nozzles: 2x 2" gated, 1x 4"; all screw in
Location: Jeff K. collection
Photo: © J. Kaminski

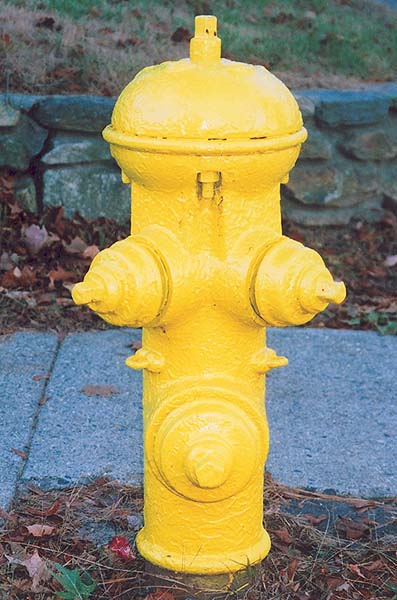

0580
Nozzles: 2x 2" gated, 1x 3"
Location: Massachusetts
Photo: © J. Kaminski

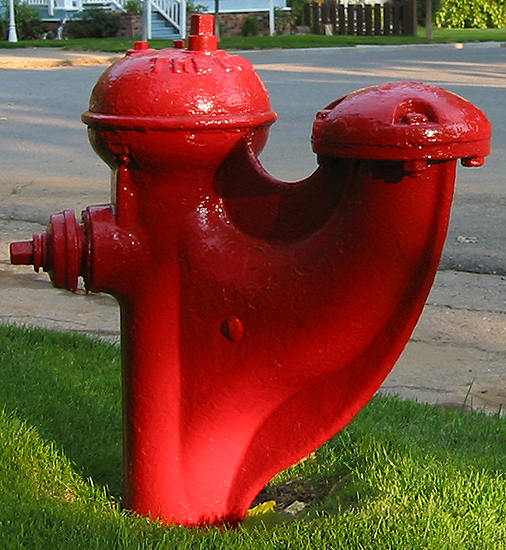

1688
Nozzles: 2x 2" gated,
+ monitor flange
Location: Wallace, Idaho
Photo: © 2002, Ted Grice

  Multiple Valve List 90s: 5 bolt bonnet
These medium size hydrants likely have a 5" main valve opening. The barrel O.D. is 8" measured near the ground line O.D. rib. One or more of the nut pockets may be omitted in a particular nozzle configuration.

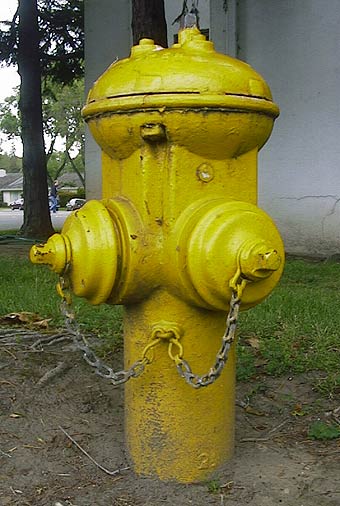

0531
Nozzles: 2x 4" gated
Location: Stockton, CA
Photo: © 2000, W. Lamm
0622
Nozzles: 1x 2" gated, 1x 5" gated
Location: Willis L. collection
Photo: © 2000, W. Lamm

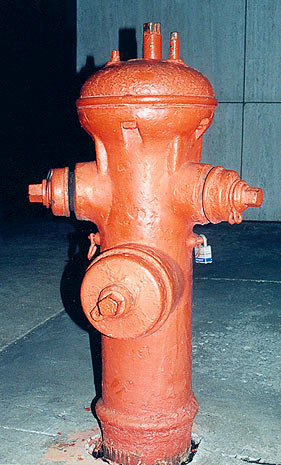

0695
Nozzles: 2x 2" gated, 1x 4"
Location: Oklahoma City, OK
Photo: © 2000, E. Kennedy

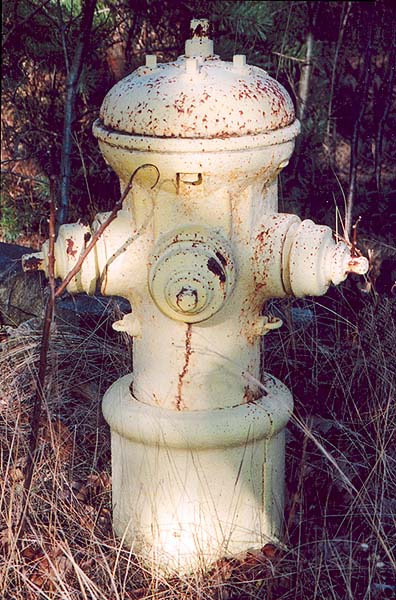

2412
Nozzles: 3x 2" internally gated (75°apart)
Location: Massachusetts
Photo: © J. Kaminski

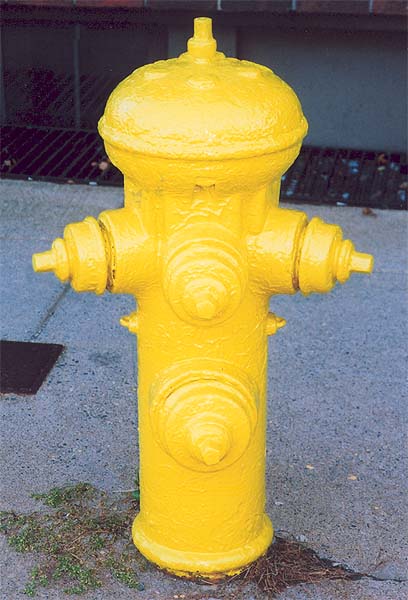

0581
Nozzles: 3x 2" gated, 1x 3"
Location: Massachusetts
Photo: © 2001, J. Kaminski

  Multiple Valve List 90s: 8 bolt bonnet
These largest hydrants likely have a 6" main valve opening. The barrel O.D. is 9" measured near the ground line O.D. rib.

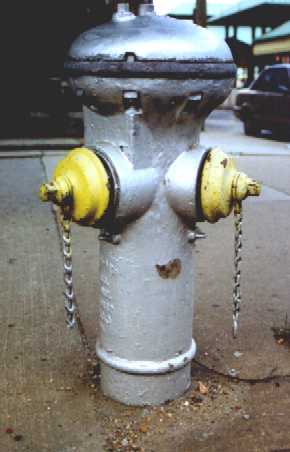

0004
Nozzles: 2x 4" (only 1 gated)
Location: Richmond, VA
Photo: © 1999, Kennedy

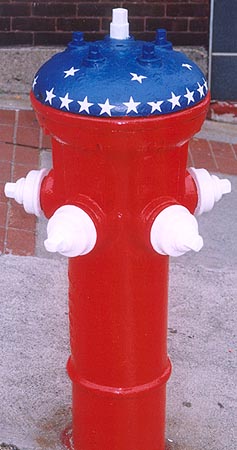

0858
Nozzles: 4x 2" gated
Location: Massachusetts
Photo: © 2002, J. Kaminski

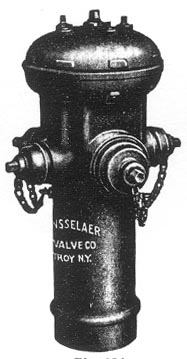

1946
Nozzles: 3x 2", 1x ~3" gated
Source: 1910 Rensselaer catalog

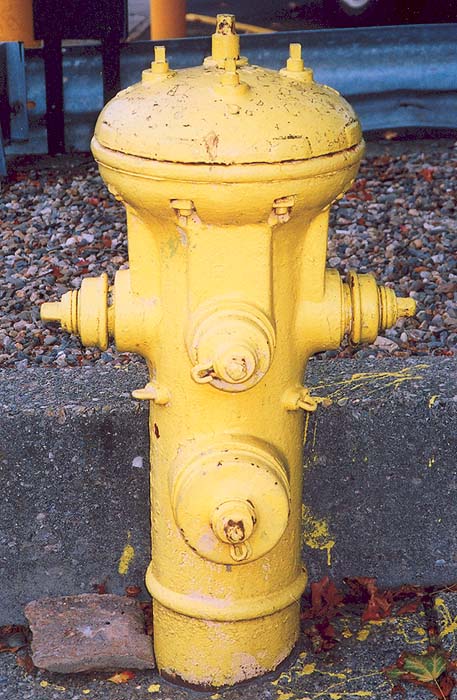

0593
Nozzles: 3x 2", 1x 5" gated
Location: Massachusetts
Photo: © 2001, J. Kaminski

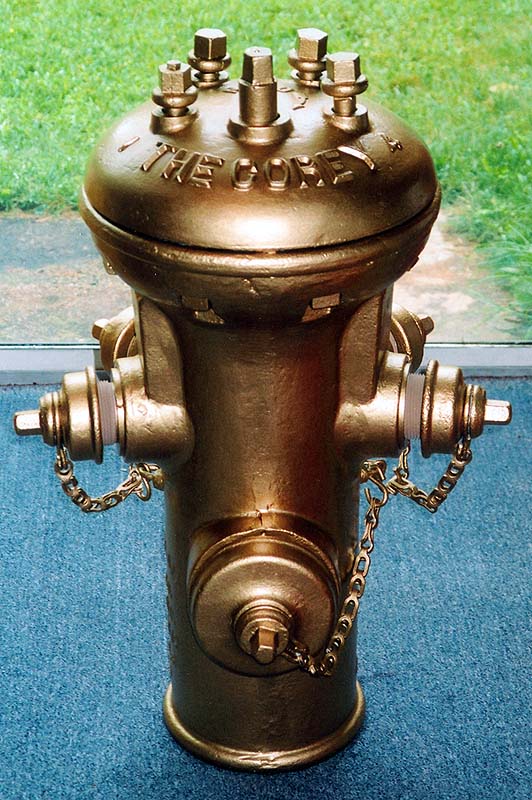

0857
Nozzles: 4x 2" gated, 1x 5"
Location: Private collection
Photo: © J. Kaminski

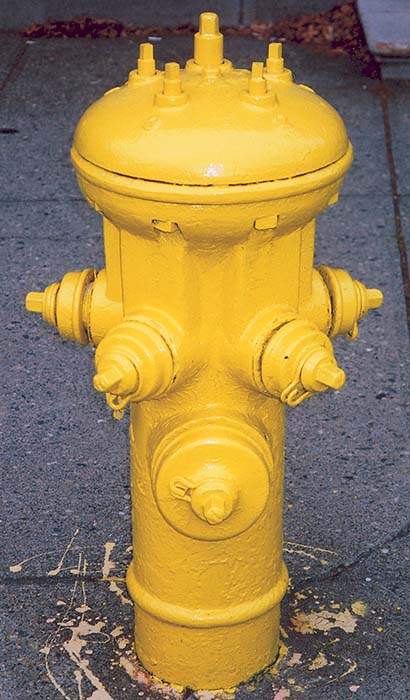

0594
Nozzles: 4x 2" gated, 1x 5"
Location: Massachusetts
Photo: © 2001, J. Kaminski
