Chapman Valve Mfg. Co.- Multiple Valve Hydrants
List 82s - Part 3

  Multiple Valve (internally gated)
These independently gated Chapman hydrants may or may not be List 82 models; but they are from the same time period. They lack the pot-bellied appearance of the conventional List 82 model. Chapman Valve literature describes these as "Chapman post fire-hydrants with inside independent valve on each hose nozzle". Three different vintages/styles are shown below; each with a picture of their logo embossing. All known examples have screw-in nozzles.

This first group has the "lacework" bonnet, typical of pre-1902 vintage List 82s.
Logo

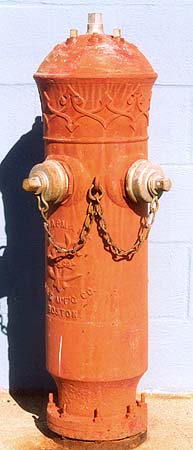

2114
Nozzles: 2x 2"
Size: 6" V.O.
Location: Private collection
0999
Nozzles: 3x 2"
Size: 6" V.O.

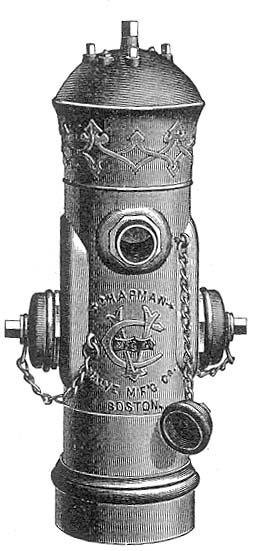

2287
Nozzles: 1x 2", 2x 4"
Size: 6" V.O.
Source: 1892 company catalog

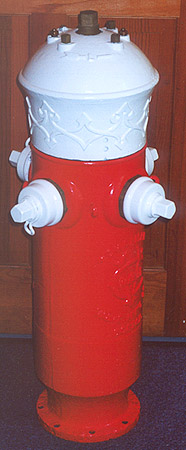

0423
Nozzles: 4x 2"
Size: 6" V.O.

This second group has the "fluted" bonnet, typical for 1902 & later vintage List 82s.
Logo

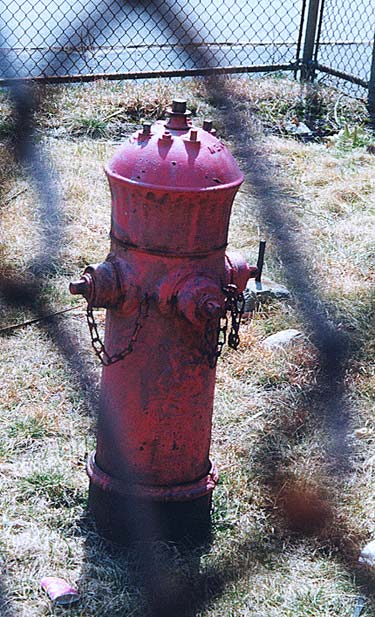

1008
Nozzles: 3x 2"
Size: 6" V.O.
Location: Massachusetts

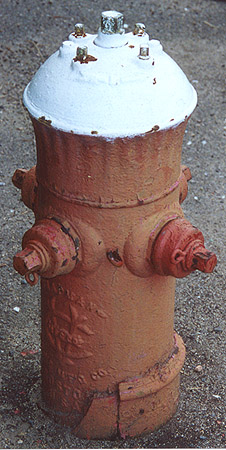

0948
Nozzles: 4x 2"
Size: 6" V.O.
Location: Massachusetts

This third group has multi-sided bonnets; and either a hexagonal (5" V.O.) or octagonal (6" V.O.) nozzle section.
Typical Logo
Alternate Logo
missing "Boston USA"

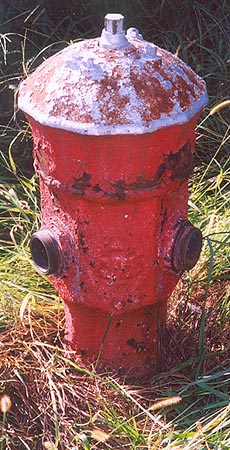

1493
Nozzles: 2x 2"
Size: 5" V.O.
Location: Massachusetts

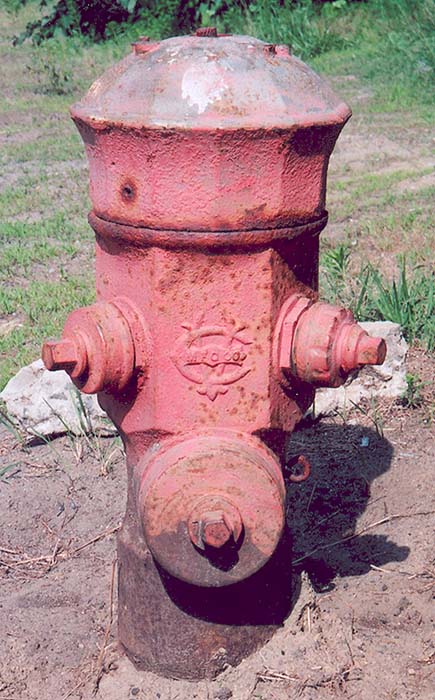

1000
Nozzles: 2x 2", non-gated 1x 5"
Size: 5" V.O.
Location: Massachusetts

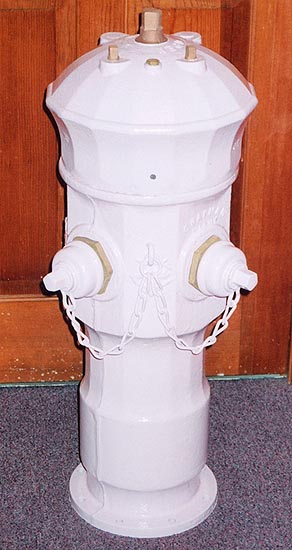

1494
Nozzles: 2x 2"
Size: 6" V.O.

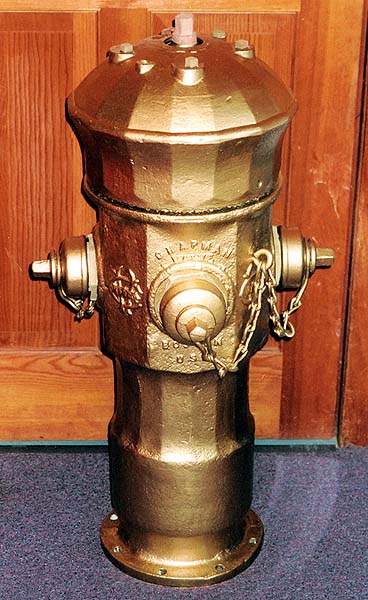

0854
Nozzles: 3x 2"
Size: 6" V.O.

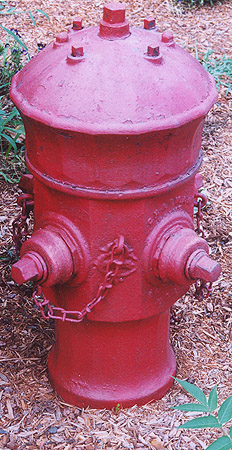

0855
Nozzles: 4x 2"
Size: 6" V.O.
Location: Massachusetts

  Multiple Valve (externally gated)
These Chapman hydrants with bolted on gate valves may or may not be List 82 models; but they are from the same time period. Chapman Valve literature describes these as "Chapman post fire-hydrants with Fig. 2458 independent valve on each hose nozzle". These hydrants have a conventional bolted flange 2 piece barrel. Two styles/vintages are shown below.

This first group has the "lacework" bonnet like that found on pre-1902 vintage List 82s.
  • List 82 hydrants with bolted on gate valves can be found in the 'circa 1902-1910 group' in Part 3

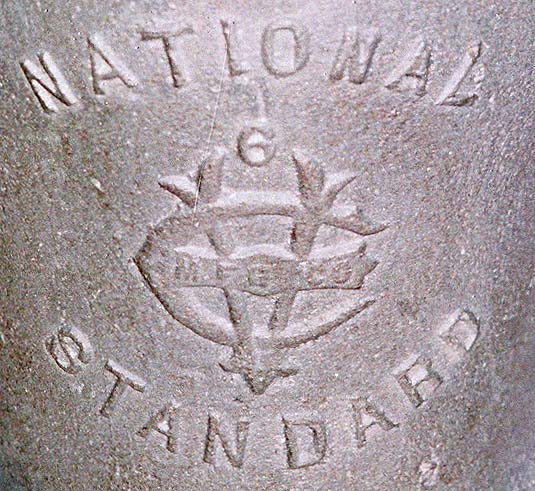

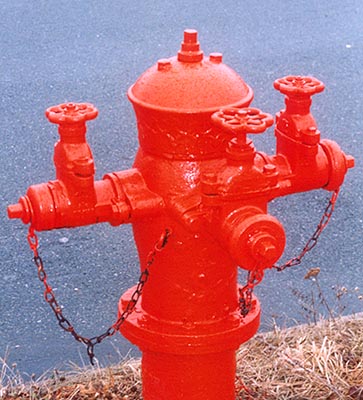

  • Typical Logo 0950
    Nozzles: 3x 2"
    Size: 6" V.O.
    Location: Massachusetts

    This second group have bullet shaped bonnets. Note that two different bonnet sizes have been discovered; which are called 'short' and 'tall' below. These are all likely 1930's vintage hydrants.

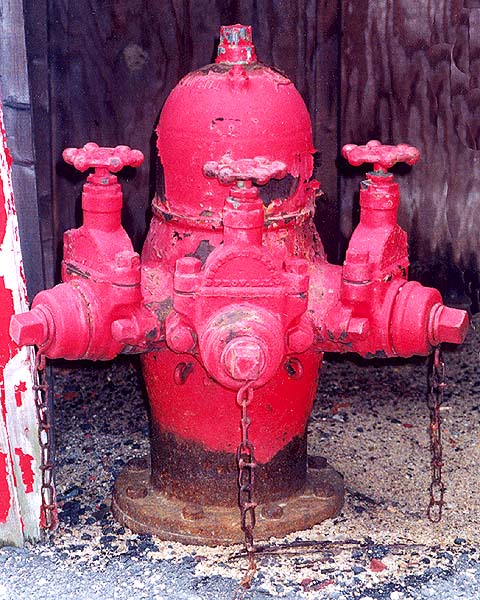

    1001
    Nozzles: 3x 2"
    Size: 6" V.O.
    Note: short bonnet
    Location: Massachusetts

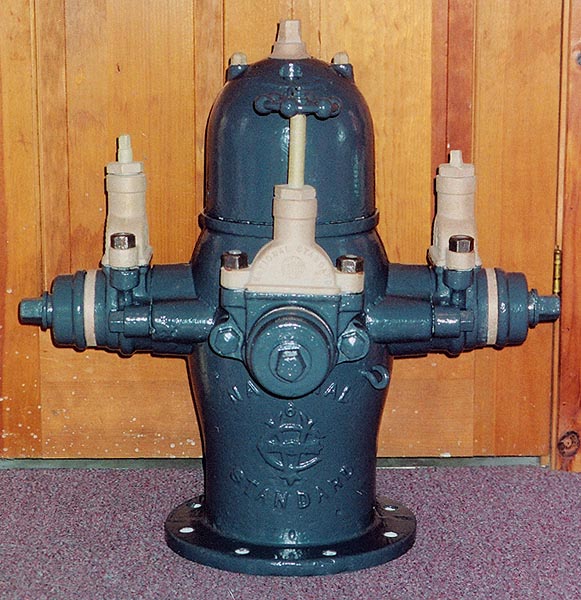

    0324
    Nozzles: 3x 2"
    Size: 6" V.O.
    Note: short bonnet
    Photo: 2006, J. Kaminski

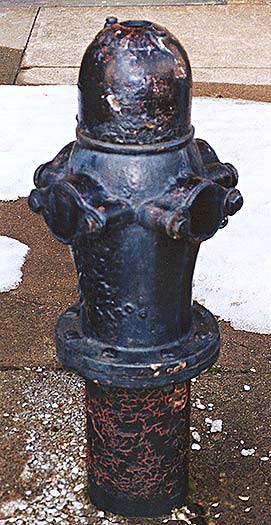

    0949
    Nozzles: 4x
    Size: 6" V.O.
    Note: tall? bonnet
    (deactivated hydrant)
    Location: Massachusetts
